Diesel, Gas & Customized Cooling Built for the Industrial Radiators. Engine Room — Remote,

Remote Radiators

Mounted apart from the engine and connected by hose or ducting — used wherever the engine can’t carry its own cooling, such as indoor genset rooms, low-headroom plant spaces, or installations needing the heat rejected outdoors.

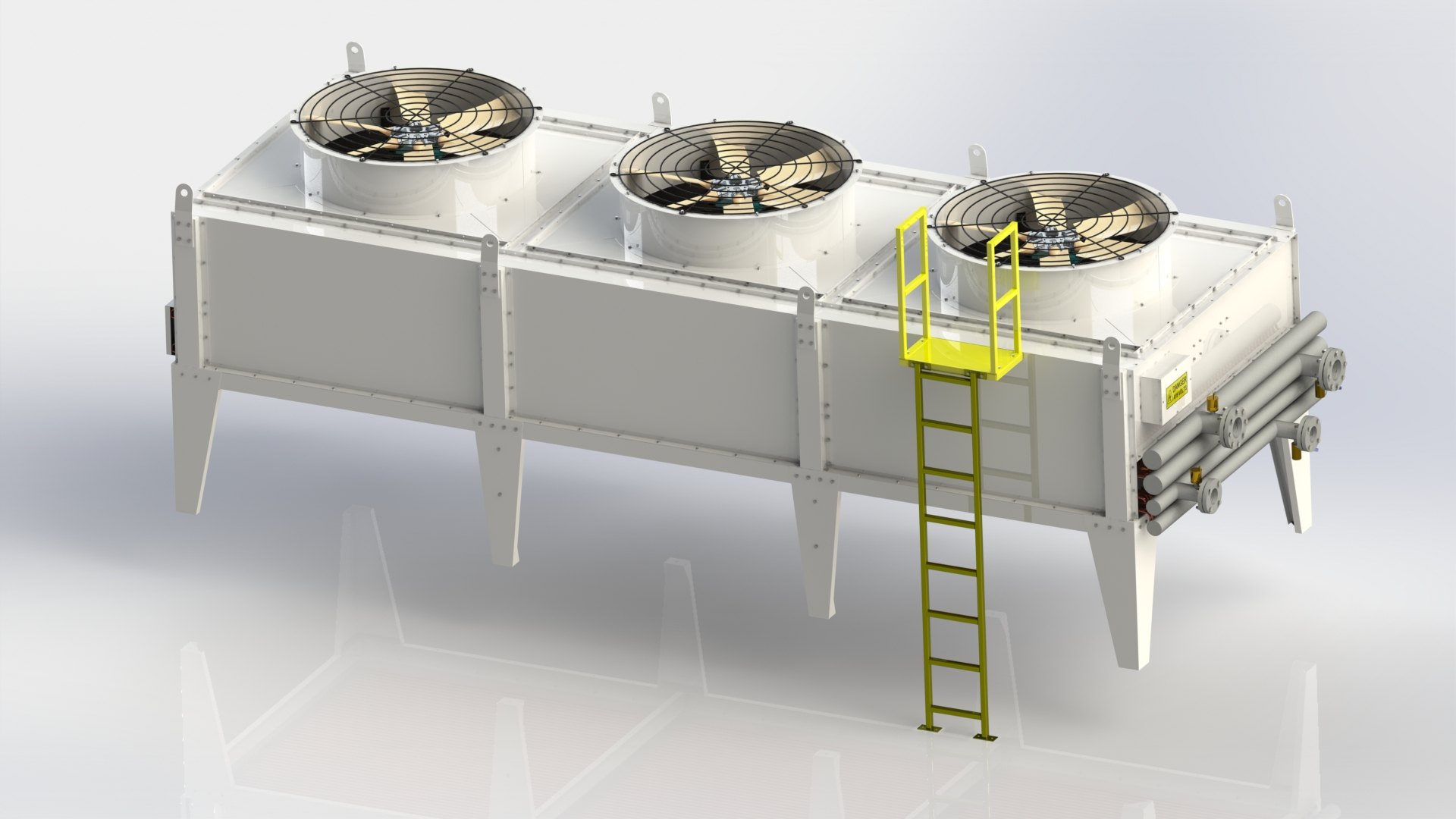

Table Type Radiator

Maxim Thermal Engineering

Flat, frame-mounted orientation for low-headroom engine rooms. Horizontal duct routing, wide face area, floor- or skid-fixed.

Skid / floor mounted, low
profile
Horizontal air-flow
ducting
Suited to large genset
rooms

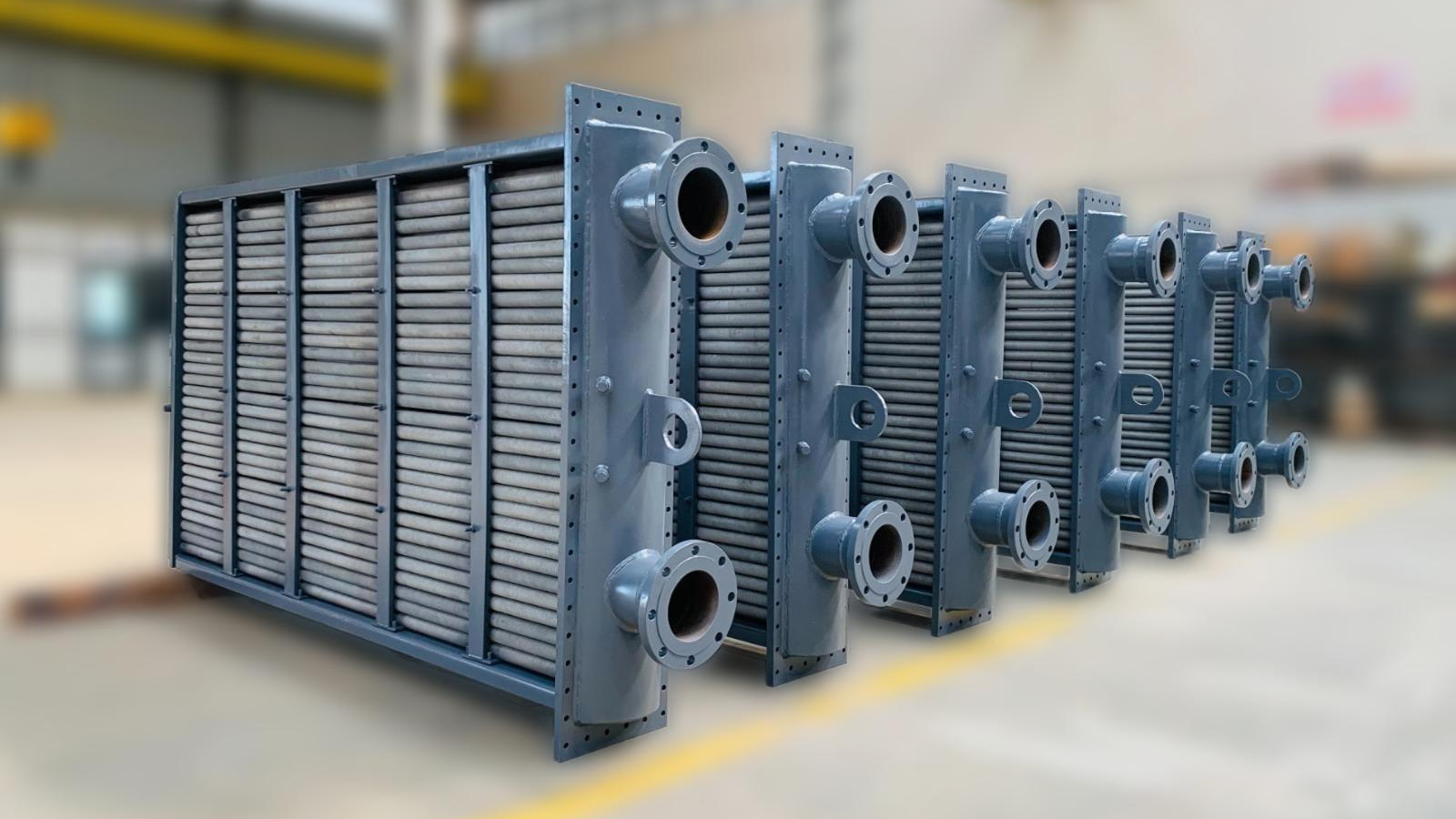

Vertical Type Radiator

Maxim Thermal Engineering

Upright core orientation for a small footprint where floor space is tight. Works well with natural-convection assisted layouts.
Small footprint, upright
core
Wall or stand
mounted
Suited to space-constrained plant
rooms

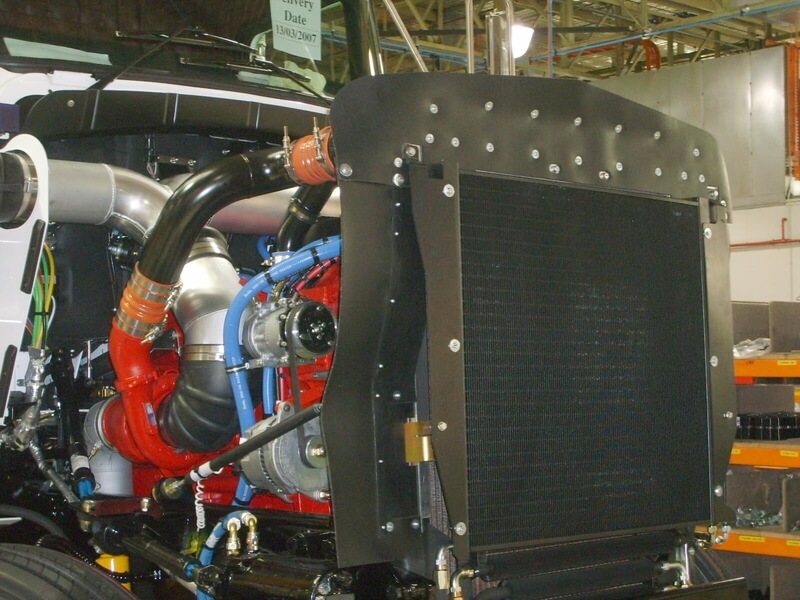

Diesel Engine Radiators

Built directly onto the diesel genset or engine skid, sized to the pump flow and heat rejection of the specific engine model — not a generic fit. Fin density is selected for your site conditions.

Direct-drive or hydraulic fan options
Dense-fin or wide-pitch cores for dusty / coastal sites
Brass, copper, or aluminium core construction
Matched to engine make, model and rated kVA
Maxim Thermal Engineering
Maxim Thermal Engineering

Gas Engine Radiators

Gas gensets and compressors run continuously closer to rated load, so their radiators carry a larger face area and higher fin count than an equivalent diesel unit to manage the extra continuous heat rejection.

Larger core face area for continuous-duty running
Higher fin count / tighter fin pitch as standard
Compatible with jacket-water and after-cooler circuits
Built for CHP, biogas and natural-gas gensets

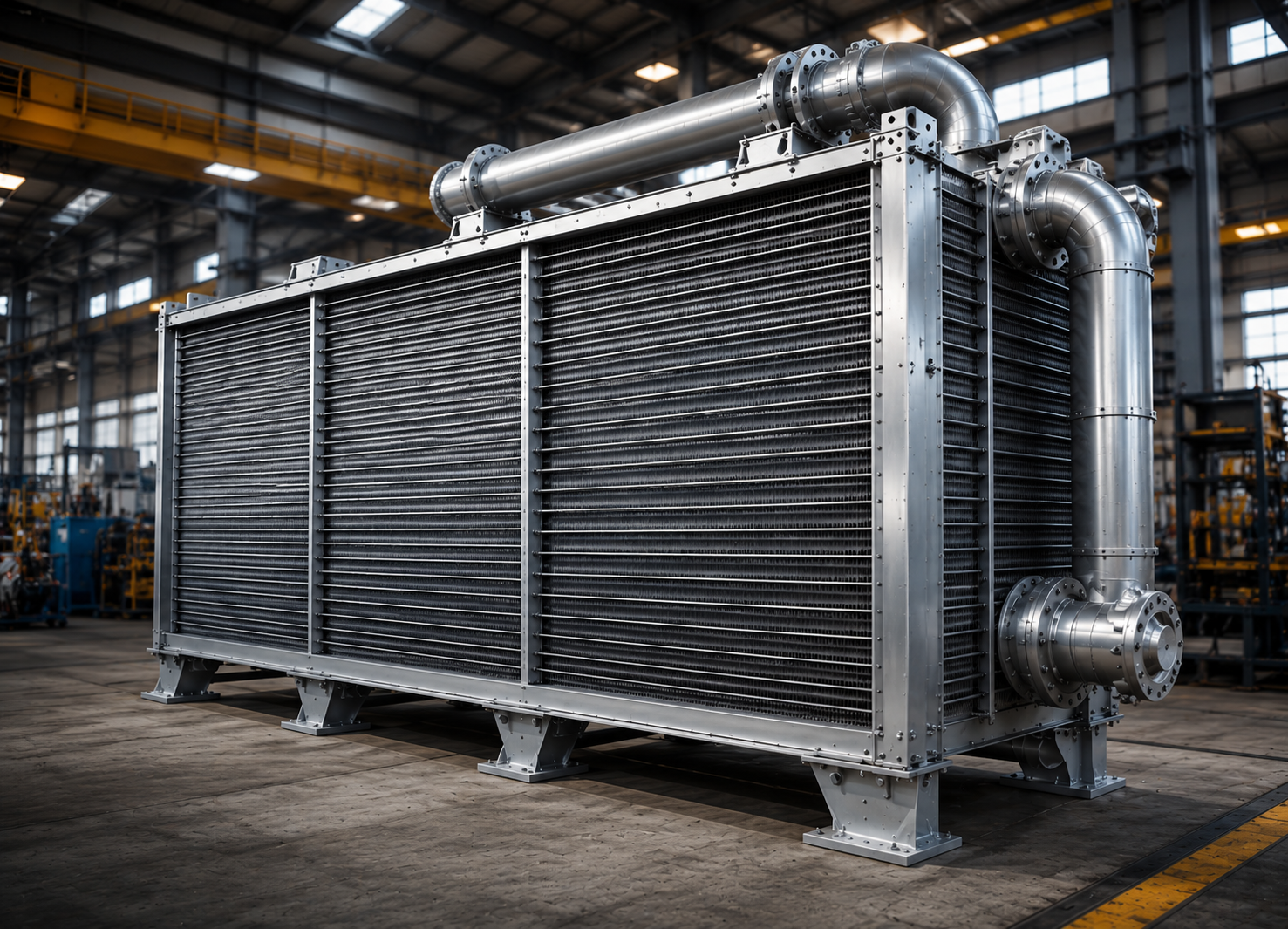

Customized Radiators

When no standard core fits, we build to specification — core dimensions, tank material, tube pitch, fin type, pressure rating and mounting all set by your drawing or by our engineers working from your duty-cycle data.

Tank Material

Steel, aluminium or brass

Fin Type

Louvered or wavy fin

Pressure Rating

To your circuit spec

Mounting

Custom brackets & feet
